CURRENT BUILD

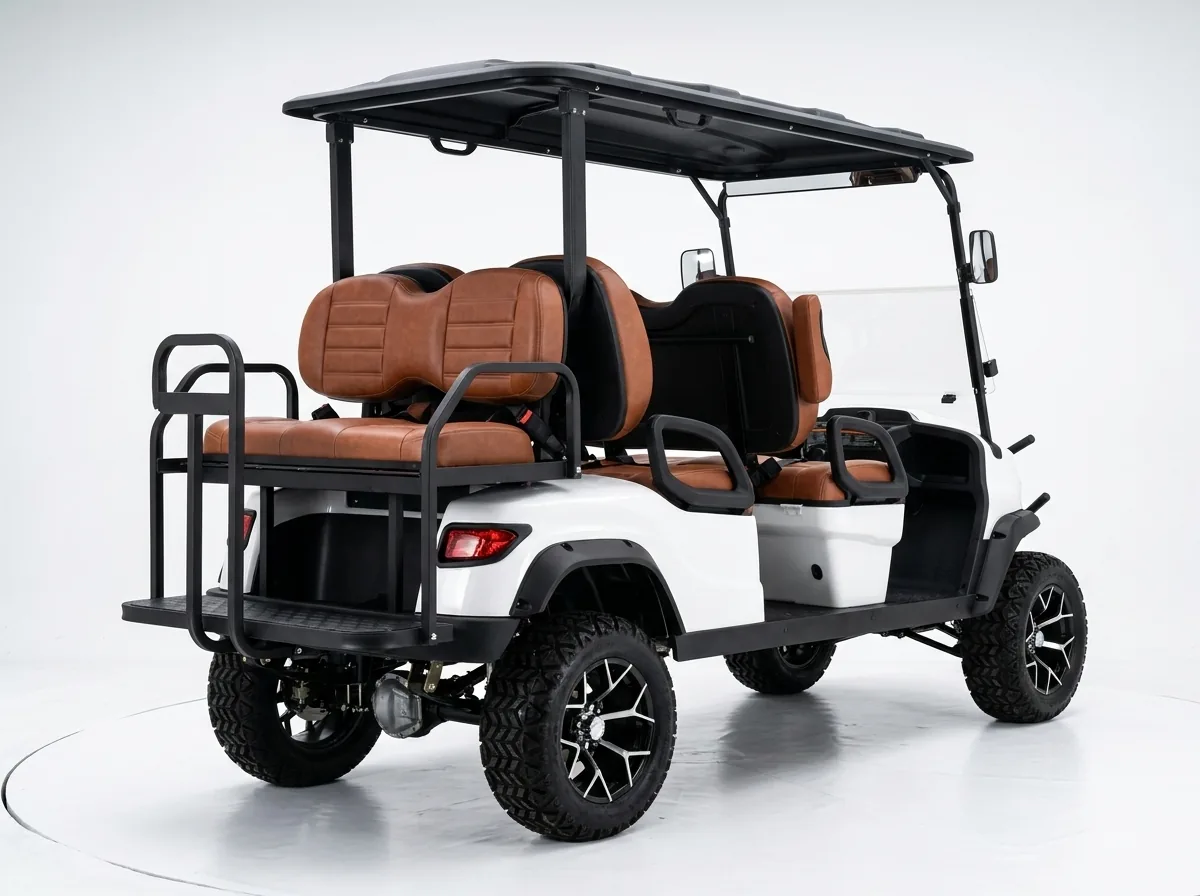

6-Seat Electric Golf Cart Specifications
These are the figures for the current 6-seat build. Final equipment, dimensions and performance are confirmed in your quotation.
- Product type
- Electric golf cart
- Seating capacity
- 6 passengers
- Electrical system
- 48 V
- Battery
- 51.2 V 150 Ah lithium iron phosphate
- Motor
- 5 kW AC motor
- Charger
- 48 V / 25 A smart vehicle charger
- Charging time
- Under 8 hours at 80% discharge
- Controller
- 48 V / 350 A
- DC converter
- 48 V / 12 V 300 W
- Maximum speed
- 40 km/h (25 mph)
- Driving range
- Contact us for a range estimate
- Overall dimensions (L x W x H)
- 4100 x 1210 x 1850 mm (161.4 x 47.6 x 72.8 in)
- Net weight
- Up to 650 kg (1,433 lb)
- Minimum ground clearance
- 170 mm (6.7 in)
- Minimum turning radius
- 5.5 m (18.0 ft)
- Climbing capacity
- 30%
- Brake system
- Front disc / rear drum brakes

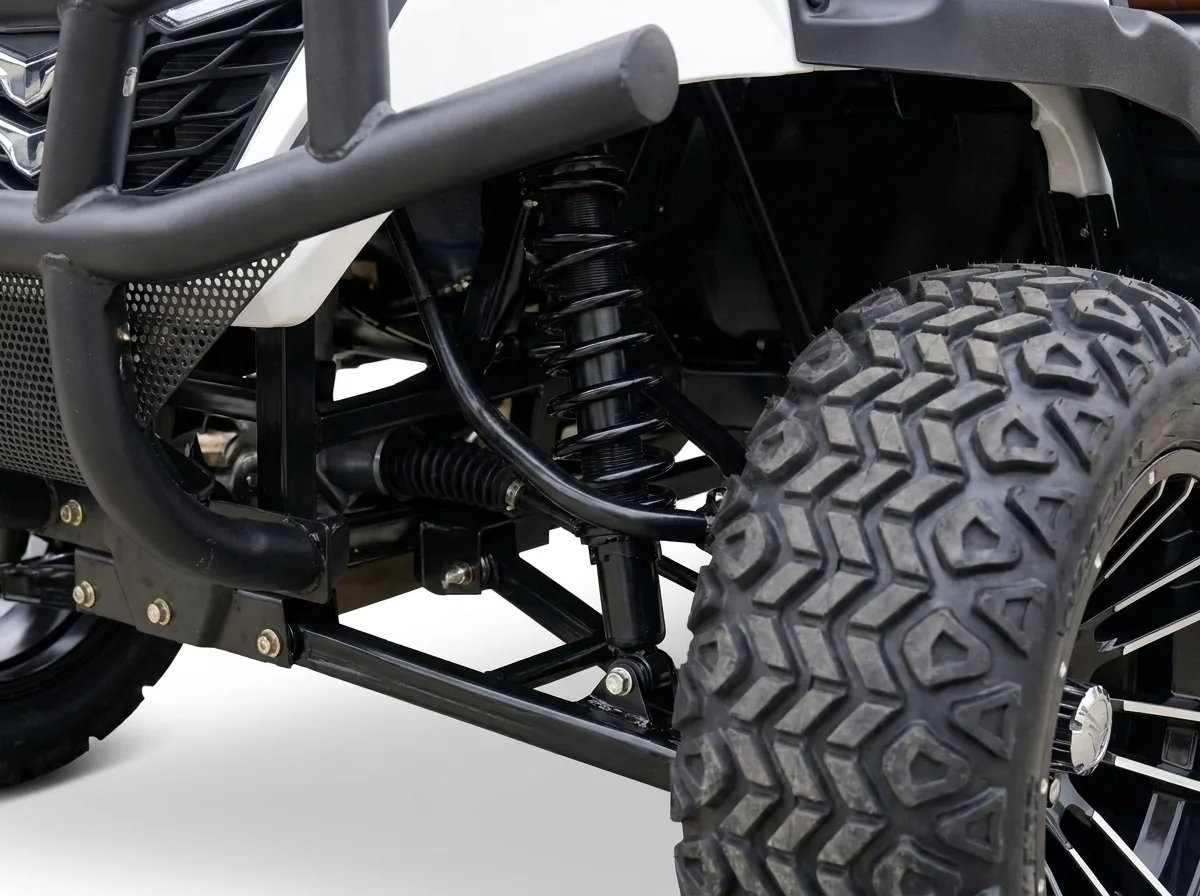

- Suspension
- Double-wishbone front / rear axle suspension

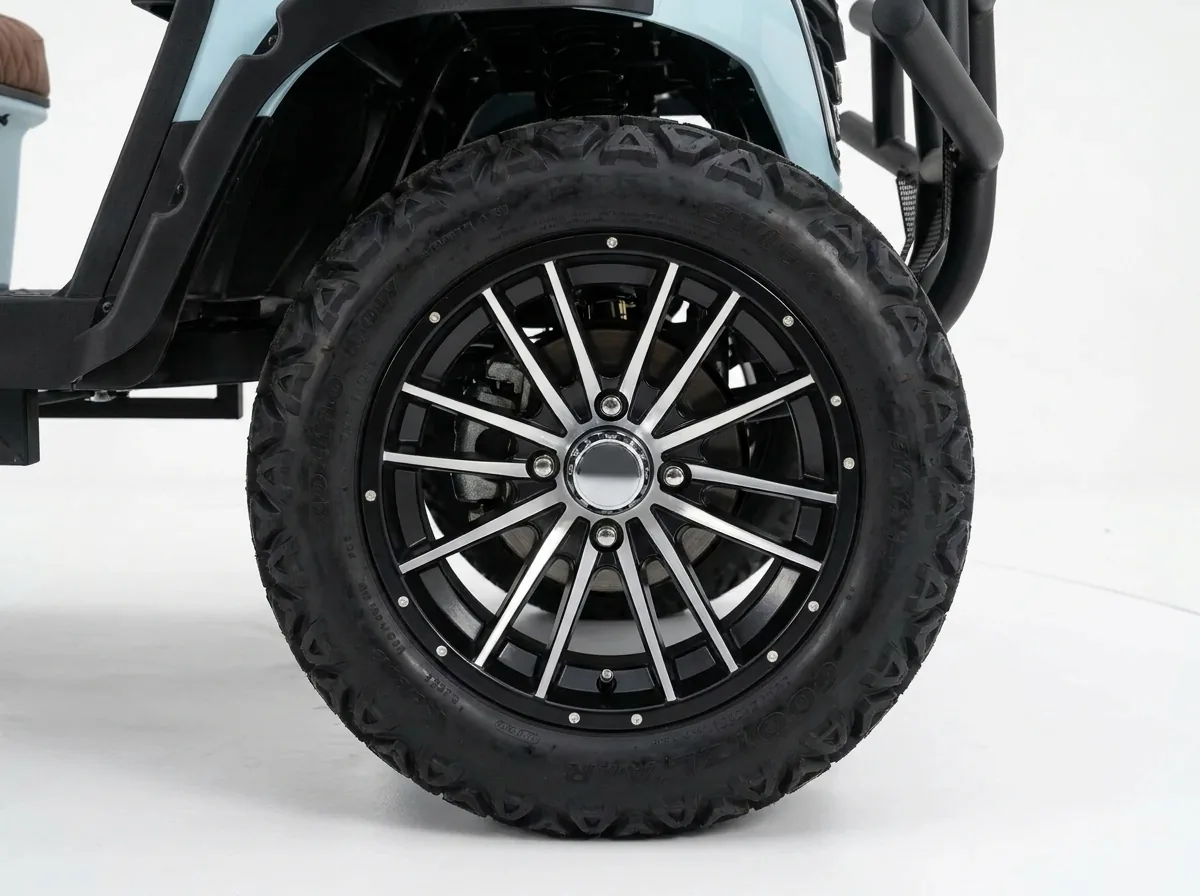

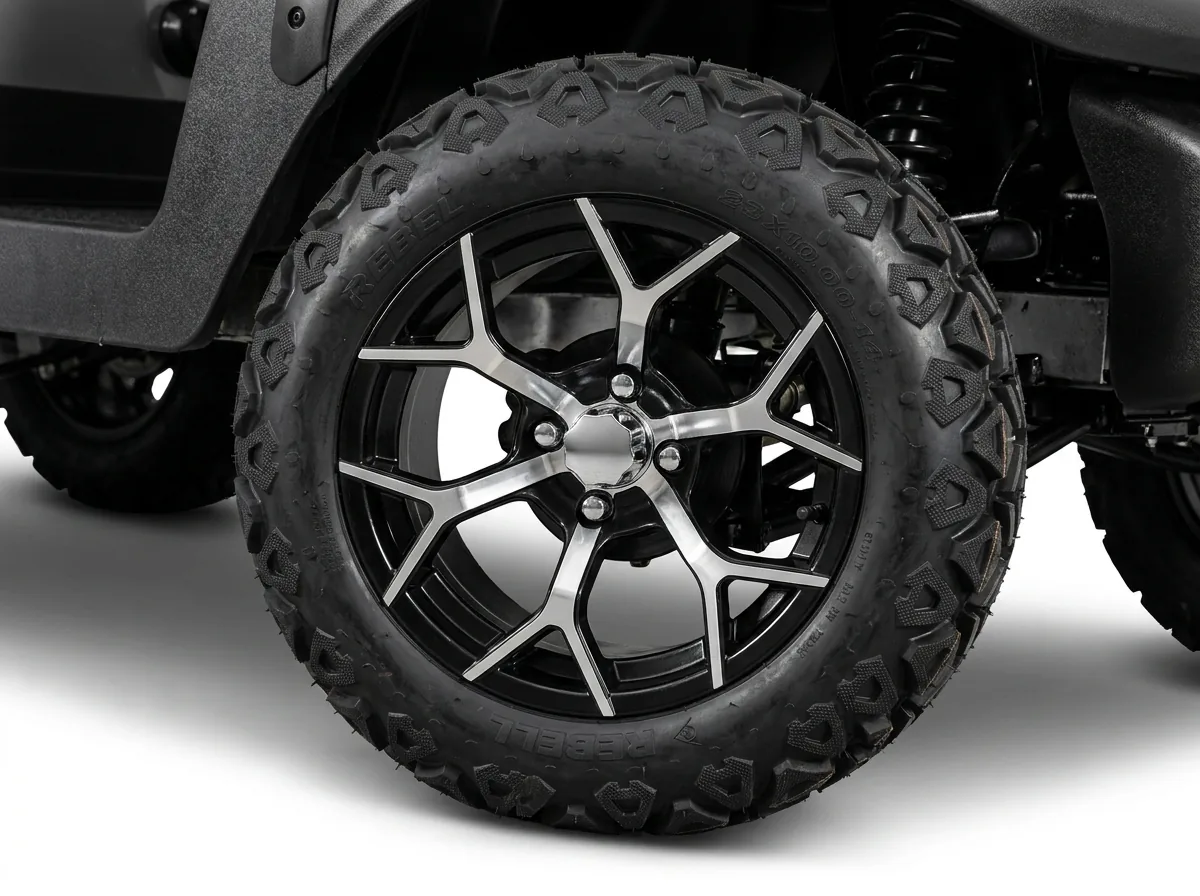

- Tires
- 14-inch aluminum wheels with DOT-certified all-terrain tires
- Display
- 10-inch IP66 touchscreen display




SIX-PASSENGER APPLICATIONS
Group Transport Without Splitting the Trip
Six seats support repeat passenger movement when most trips carry more people than a standard four-seat cart.

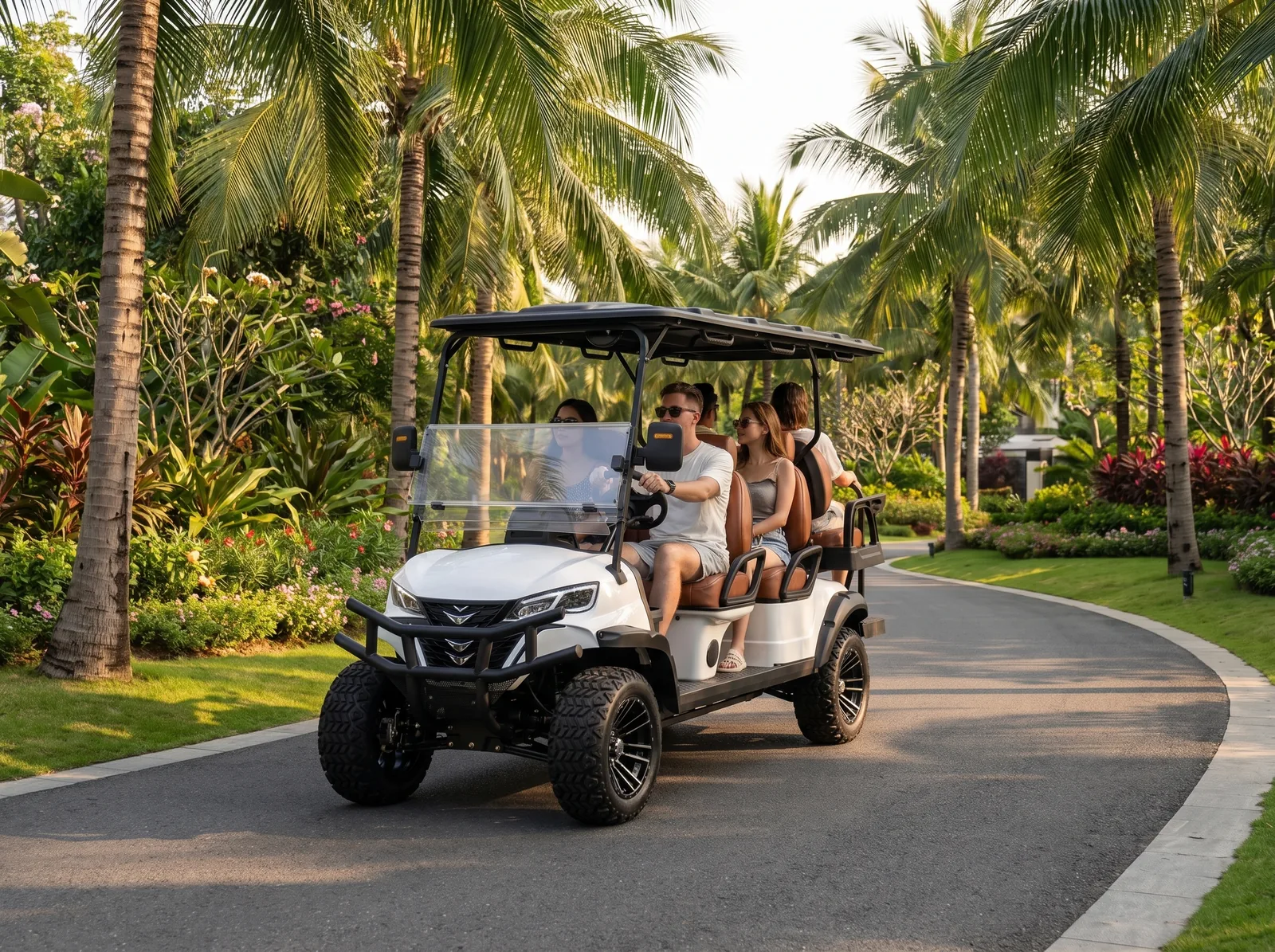

Resort guest transport
Move families and small groups between reception, rooms, restaurants and amenities without splitting them between vehicles.
Tourism and visitor routes
Carry six passengers on planned trips through attractions, parks and leisure properties with regular pickup points.
Campuses and communities
Use one vehicle for scheduled staff, visitor or resident movement when passenger volume exceeds a four-seat cart.

VEHICLE AND CONFIGURATION
Configure Your 6-Seat Golf Cart
Tell us how passengers board, how far the vehicle travels and what the order needs to include.
- Passenger equipment
- Choose the windshield, lighting, seat material, handholds, wheels, display equipment and accessories required for the route.
- Route and turning space
- Tell us the passenger load, grade, daily distance, charging access and tightest turning points, and we will configure the cart to fit.
- Colors & trim
- Select from standard Waygo body colors, seat upholstery and interior finishes for your fleet or dealership.
- Supply and support
- Individual purchases are fulfilled through our authorized California dealer, and volume fleet or dealer orders are scheduled directly. Every cart carries a 12-month limited warranty from delivery, battery included, and the quotation lists the coverage and recommended spare parts.
6-SEAT GOLF CART FAQ
Questions About the 6-Seat Model
Our fleet planning guide covers passenger flow, routes and charging inputs. We confirm the final configuration and commercial terms in the quotation.
Driving range depends on passenger load, route grade, speed, temperature, tire pressure, accessories and battery configuration. Contact us with your operating requirements for a range estimate.
The 51.2 V 150 Ah pack charges to 80% in under eight hours on the 48 V / 25 A charger. The final battery and charger combination is confirmed in your quotation.
The current build has a 5.5 m (18.0 ft) minimum turning radius. Check the tightest corners, gates, pickup zones and parking areas on the route before ordering.
Choose six seats when trips regularly carry five or six people and keeping the group together matters more than using the smallest vehicle footprint. A four-seat model remains more practical when most trips carry fewer passengers.
Yes. Battery capacity, body color, seat material, windshield, lighting, wheels, display equipment, commercial accessories and spare parts can all be specified for the order.
The supply route depends on the model, quantity, destination and current availability. Individual buyers purchase through our authorized California dealer, and authorized dealers or commercial fleets can schedule volume deliveries directly.
A typical factory production planning window is 15 to 25 days after the configuration and order details are confirmed. The quotation states the schedule for the selected model, quantity and packing method.
REQUEST A 6-SEAT QUOTE
Plan Your 6-Seat Golf Cart Order
Tell us your intended use, quantity and destination. We will help you choose a configuration and prepare a quote.
Single units ship from California stock. Container pricing is available for dealers and fleets.
