CURRENT BUILD

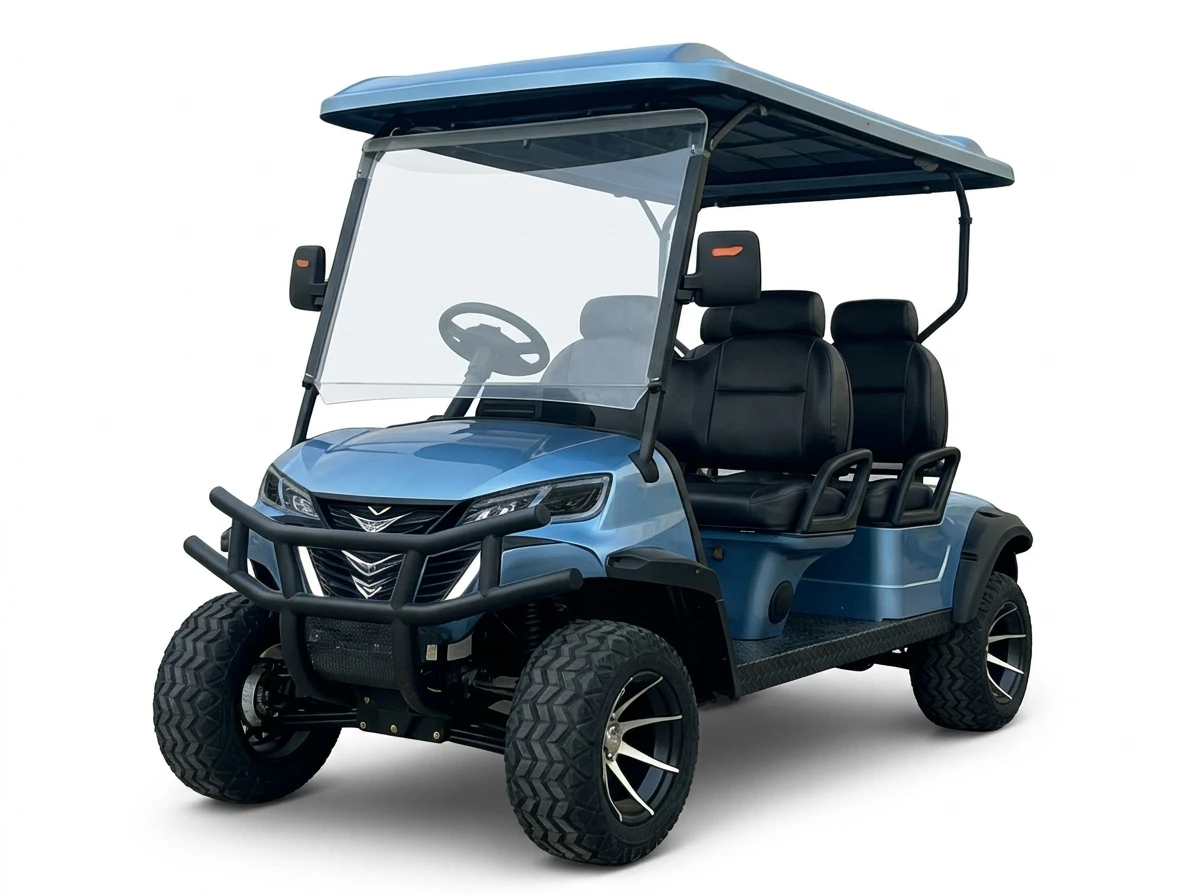

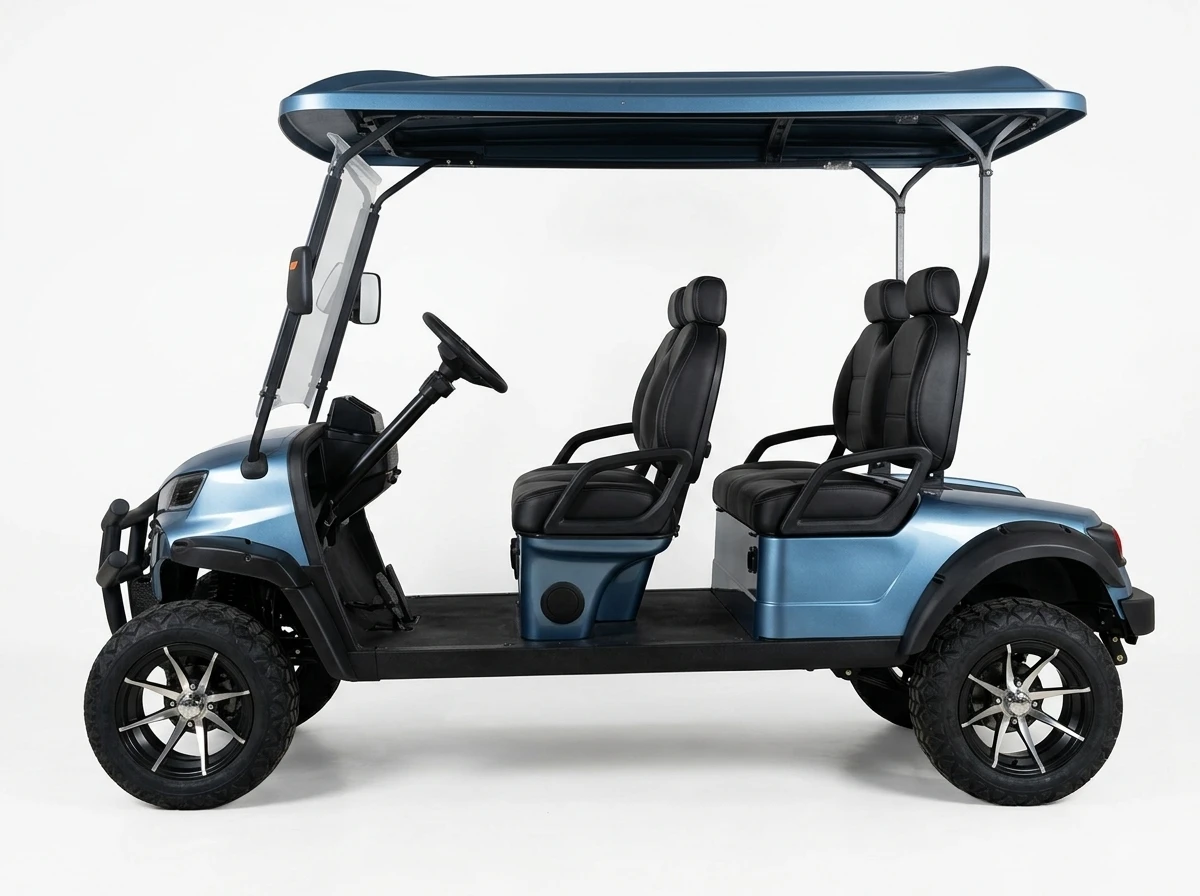

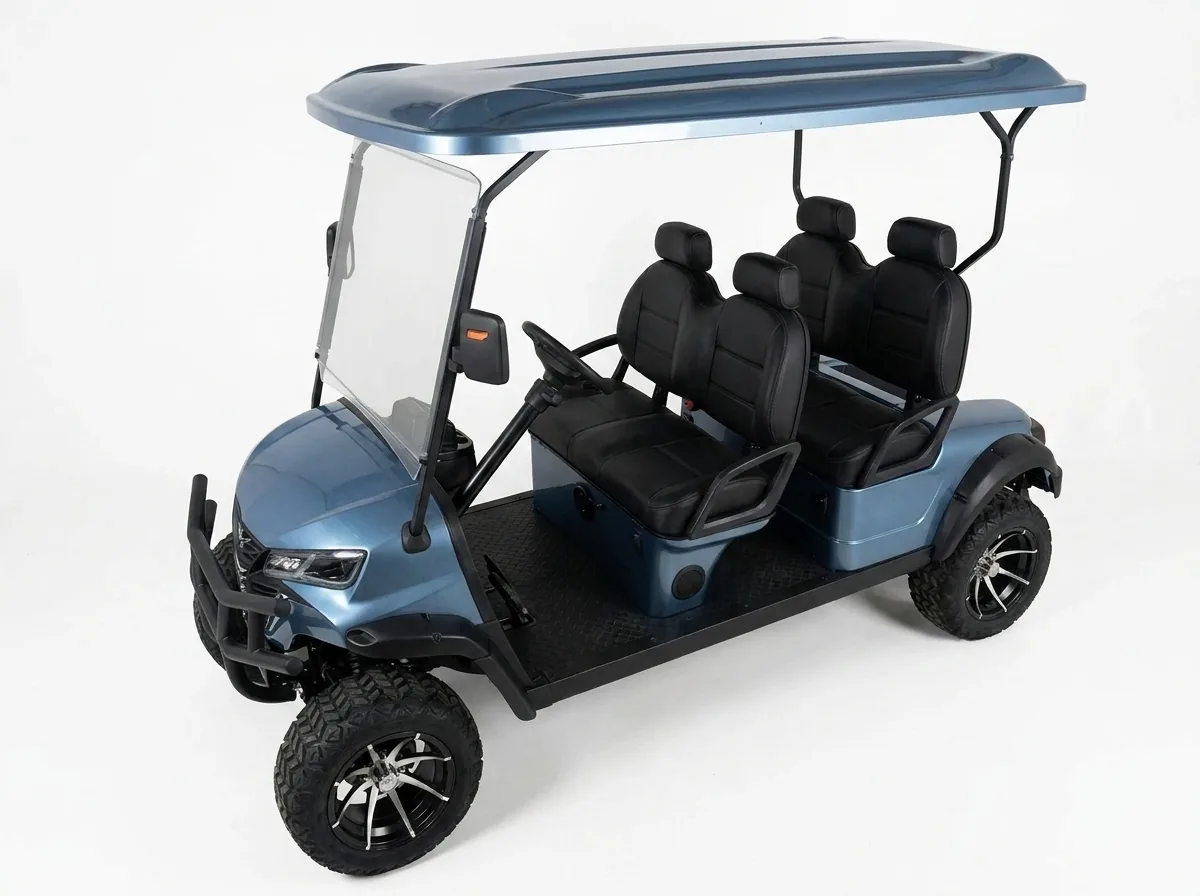

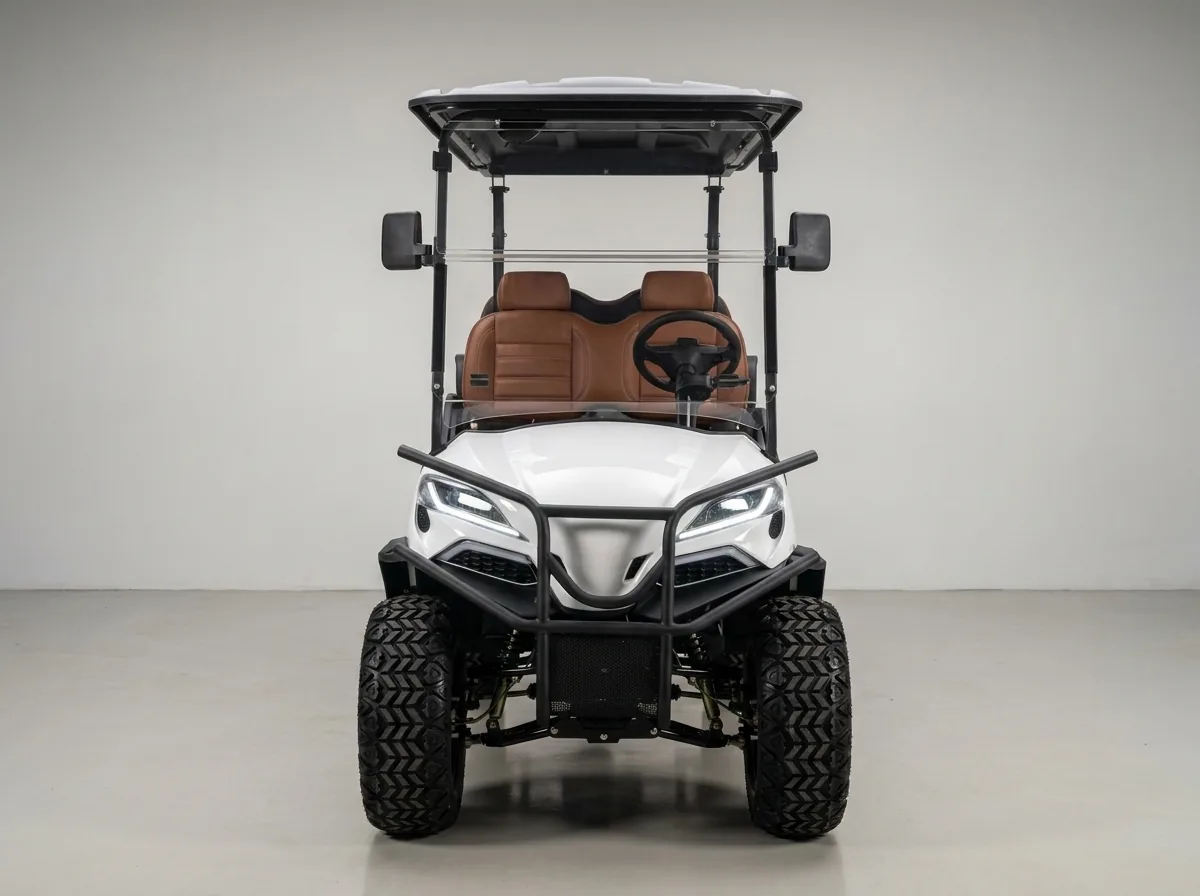

4-Seat Electric Golf Cart Specifications
These are the figures for the current 4-seat build. Final equipment, dimensions and performance are confirmed in your quotation.
- Product type
- Electric golf cart
- Seating capacity
- 4 passengers
- Electrical system
- 48 V
- Battery
- 51.2 V 150 Ah lithium iron phosphate
- Motor
- 5 kW AC motor
- Charger
- 48 V / 25 A smart vehicle charger
- Charging time
- Under 8 hours at 80% discharge
- Controller
- 48 V / 350 A
- DC converter
- 48 V / 12 V 300 W
- Maximum speed
- 40 km/h (25 mph)
- Driving range
- 90-110 km (56-68 mi) on flat road
- Overall dimensions (L x W x H)
- 3015 x 1330 x 1960 mm (118.7 x 52.4 x 77.2 in)
- Net weight
- Up to 620 kg (1,367 lb)
- Minimum ground clearance
- 170 mm (6.7 in)
- Minimum turning radius
- 4.0 m (13.1 ft)
- Climbing capacity
- 30%
- Brake system
- Front disc / rear drum brakes
- Suspension

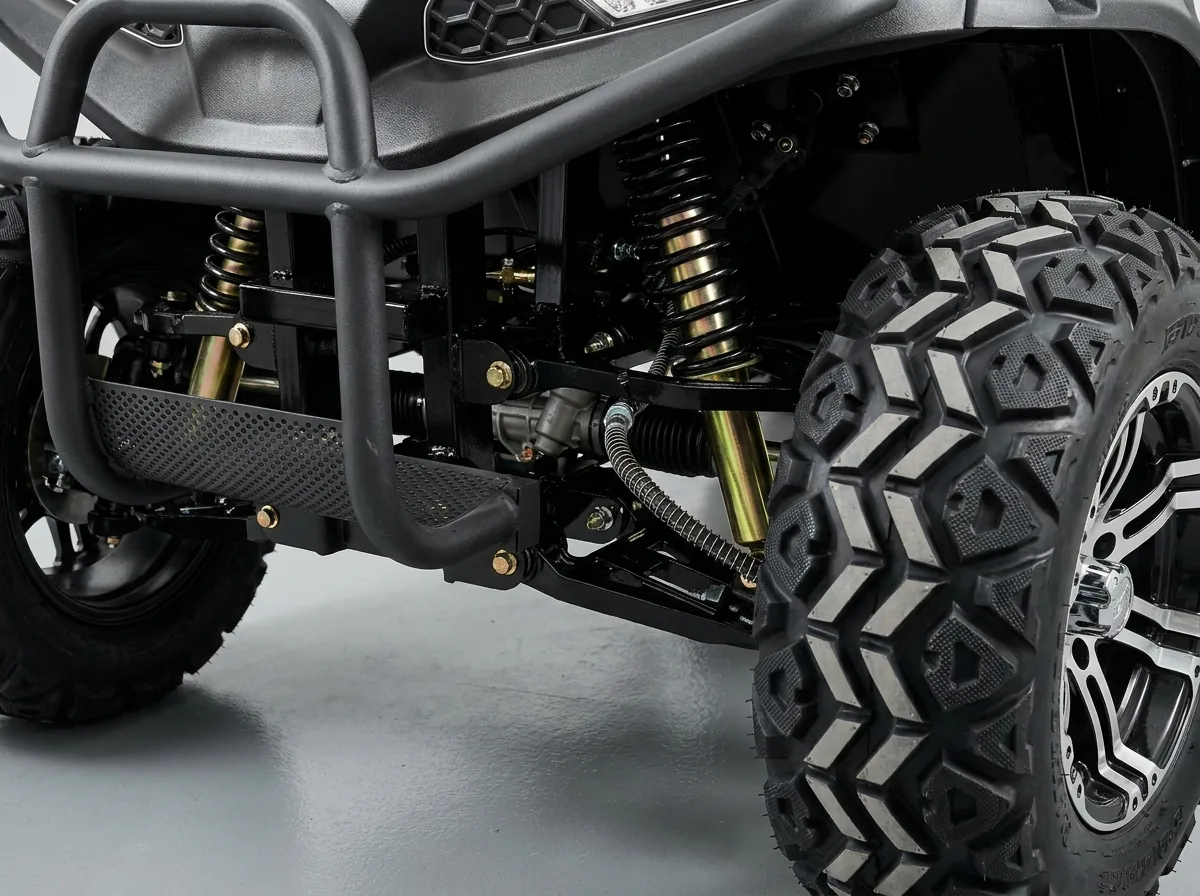

- Double-wishbone front / rear axle suspension
- Tires

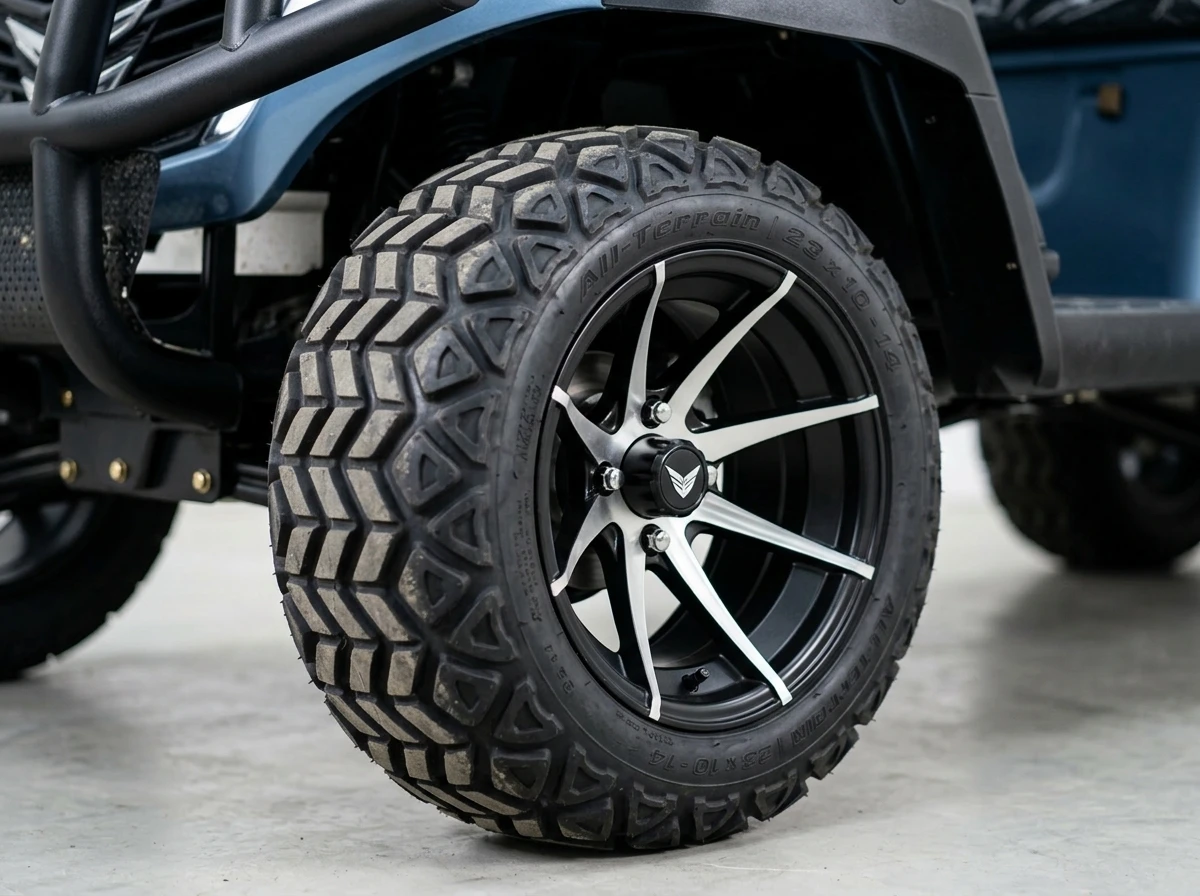

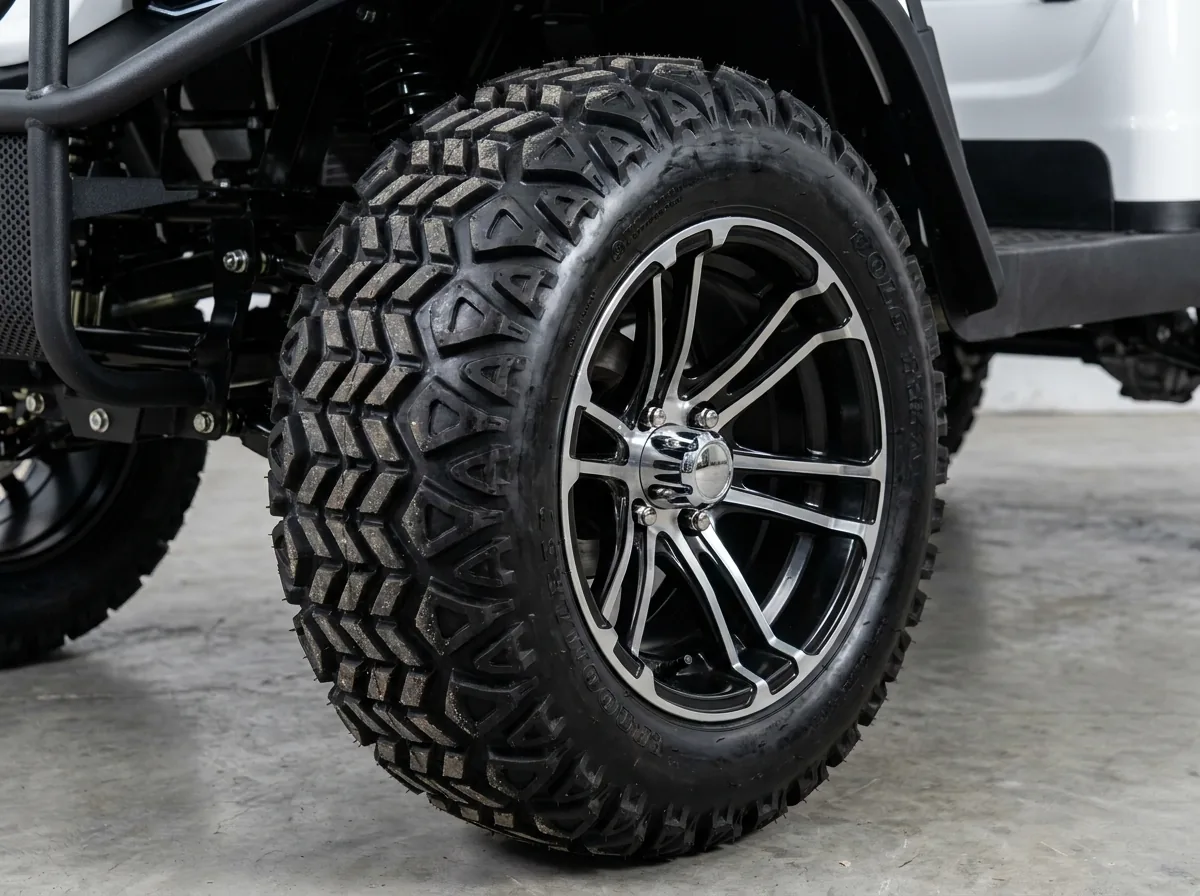

- 14-inch aluminum wheels with DOT-certified all-terrain tires
- Display
- 10-inch IP66 touchscreen display




FOUR-PASSENGER APPLICATIONS
Built Around Everyday Passenger Movement
A four-seat golf cart works well where small groups need frequent transport and route space still matters.
Hotels and resorts

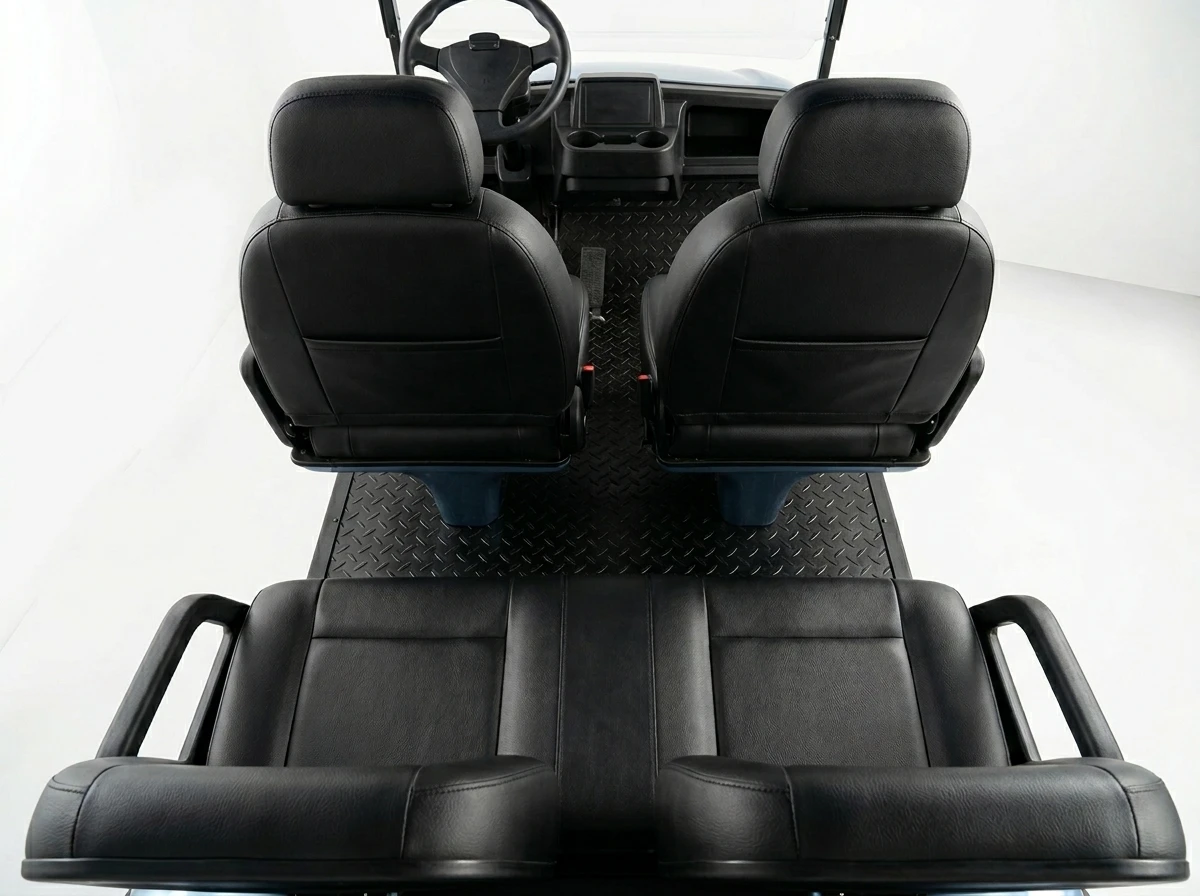

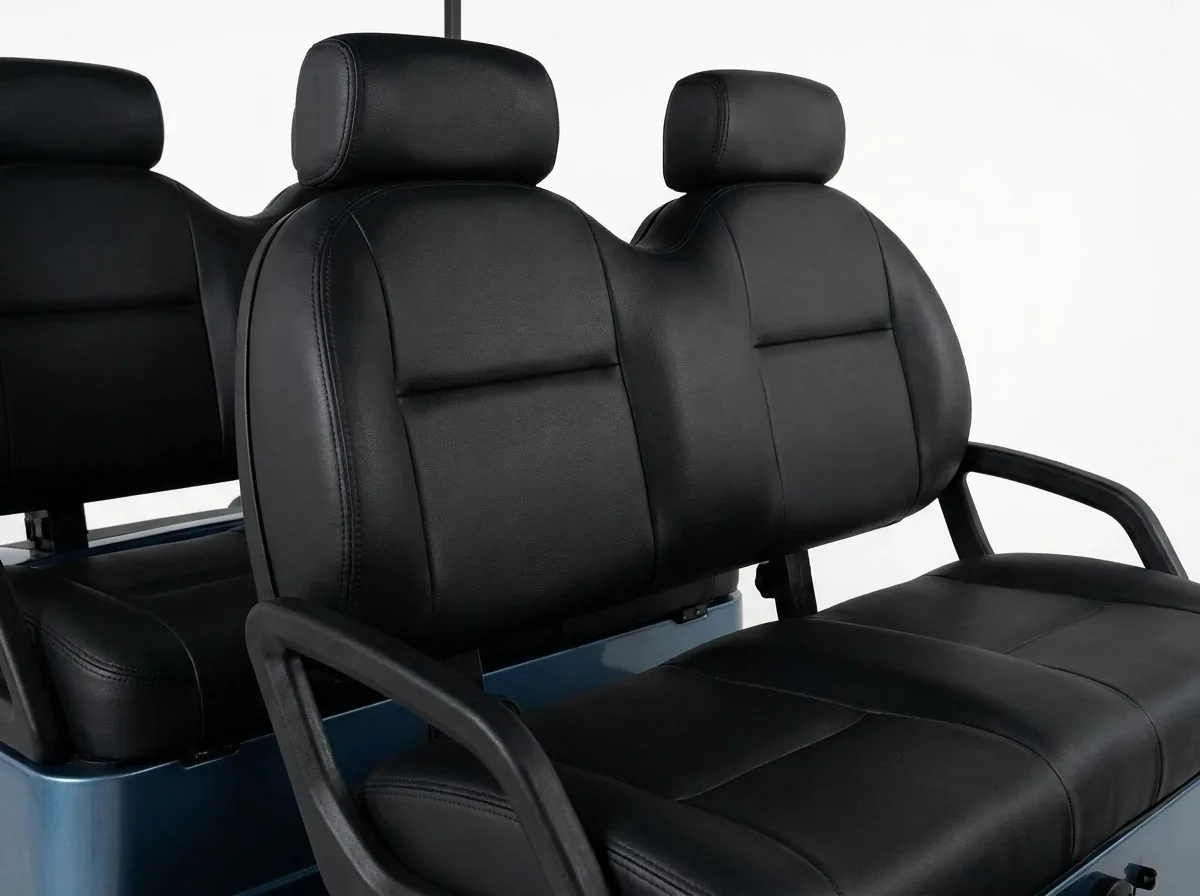

Handle guest check-ins, villa transfers and staff movement with four forward-facing passenger seats.
Campuses and communities
Run scheduled or on-demand trips for visitors, property teams and residents without moving a larger six-seat vehicle.

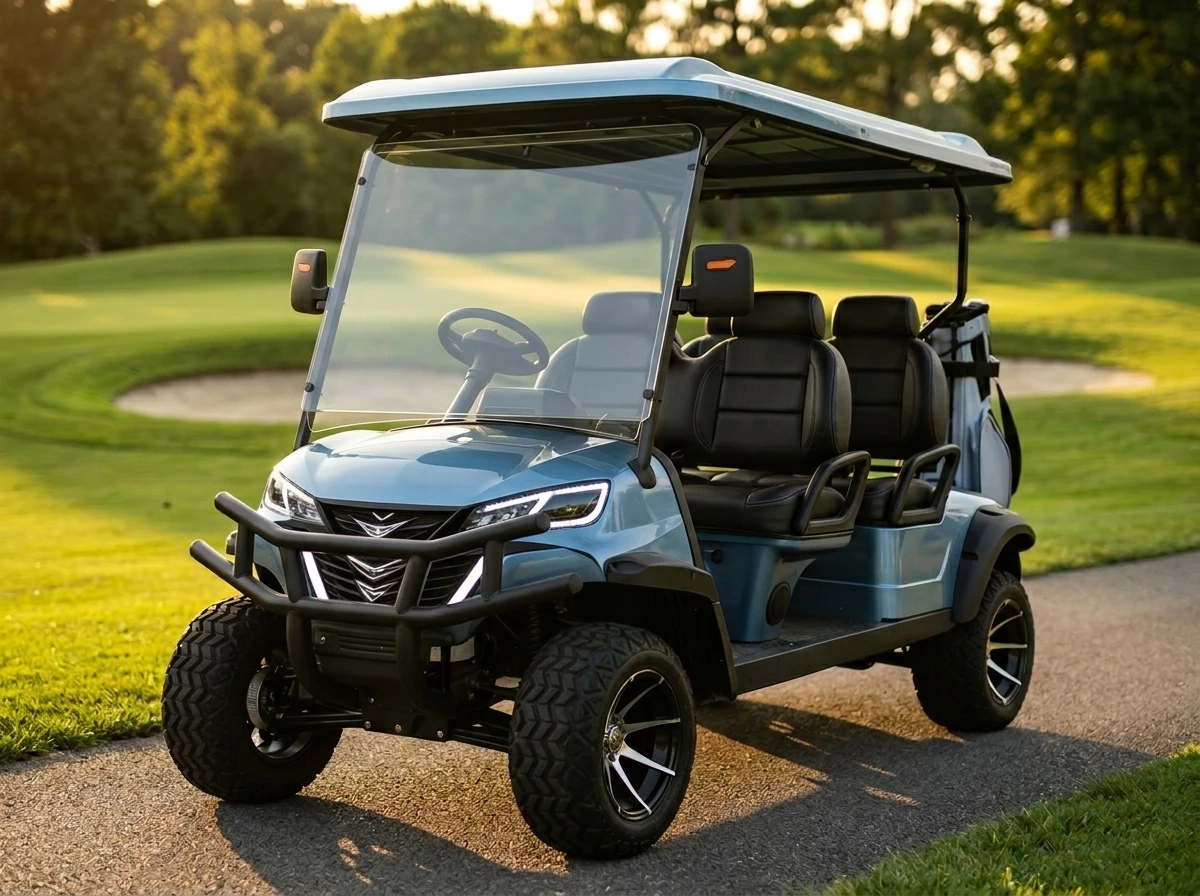

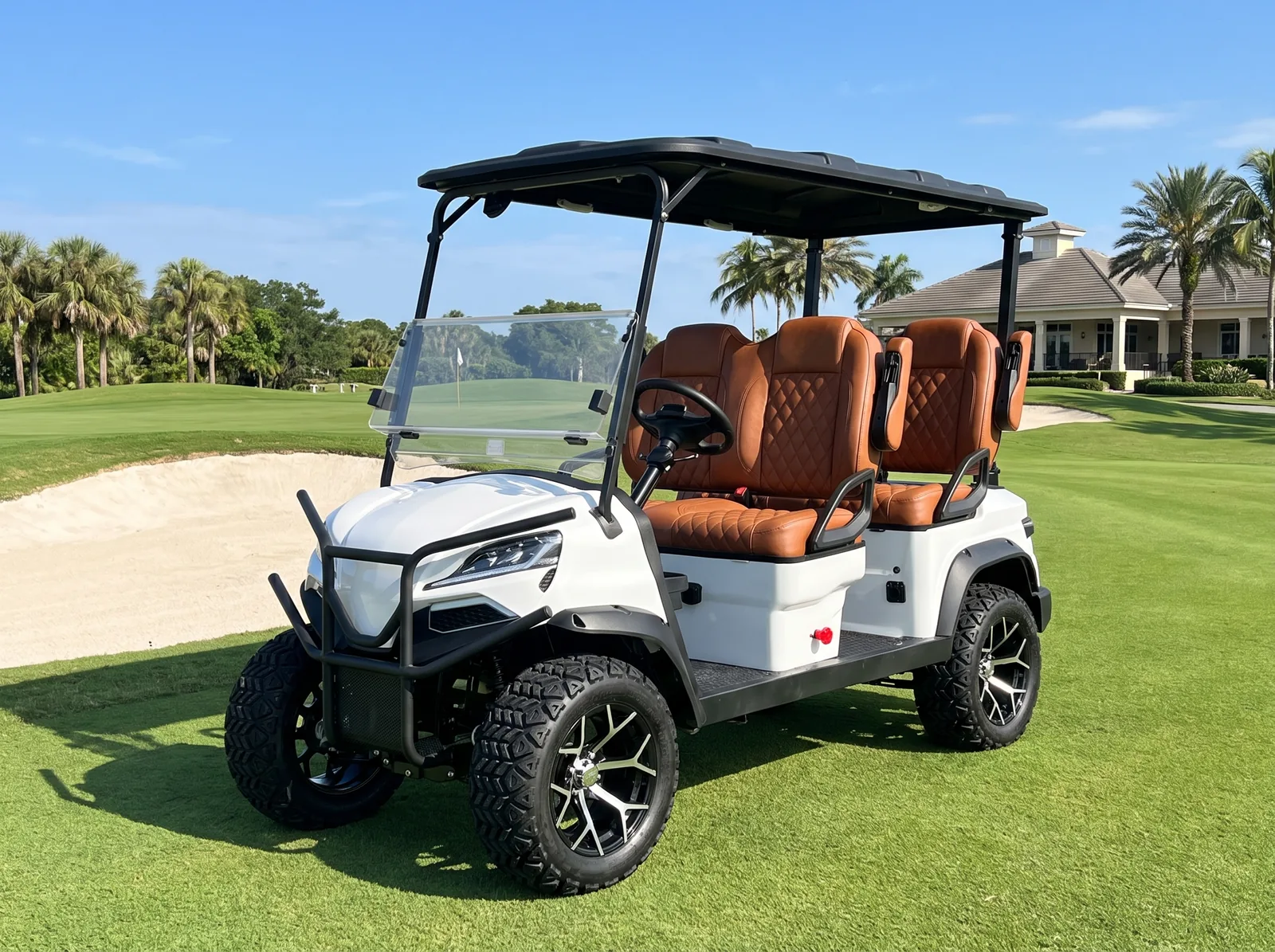

Golf course operations
Carry a small group between the clubhouse, course and support areas while keeping a practical vehicle footprint.
4-Seat vs 2-Seat & 6-Seat fit
A four-passenger layout offers the sweet spot for guest hospitality and small family transfers—providing dedicated group comfort without the longer wheelbase and wider turning radius of a six-seat shuttle.

VEHICLE AND CONFIGURATION
Configure Your 4-Seat Golf Cart
Tell us how the vehicle will be used, where it will operate and what your order needs to include.
- Vehicle equipment
- Choose the windshield, lighting, seat material, wheels, display equipment and accessories required for the route.
- Colors & trim

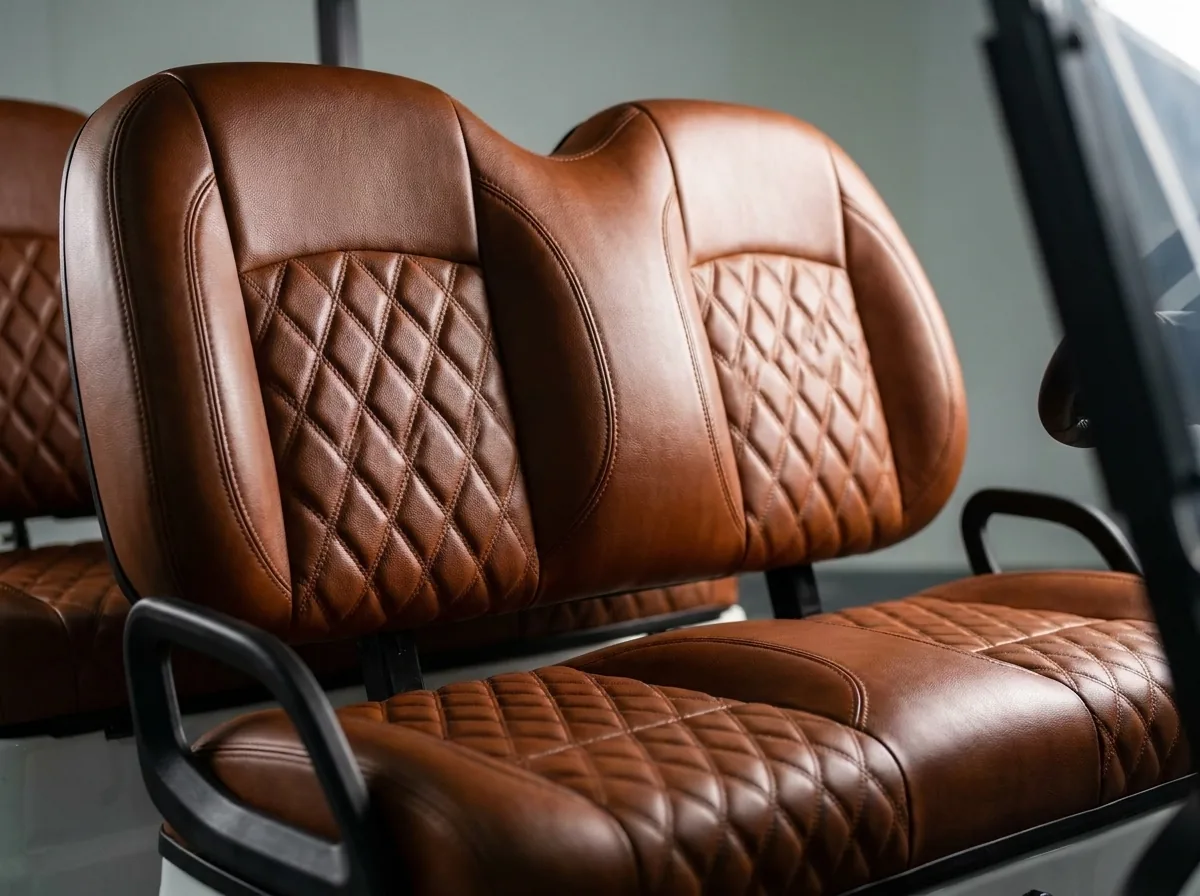

- Select from standard Waygo body colors, seat upholstery and interior finishes for your fleet or dealership.
- Supply route
- Waygo supplies commercial electric golf carts through our authorized U.S. dealer network and scheduled fleet deliveries, subject to model and inventory availability.
- Warranty and spare parts
- 12-month limited warranty from delivery, battery included. The quotation lists the coverage and recommended spare-parts package for the selected configuration.
4-SEAT GOLF CART FAQ
Questions Before You Request a Quote
Start with the reference specification below. Our fleet planning guide covers route and charging inputs, and we confirm the final vehicle, commercial terms and supply schedule in the quotation.
The current build is rated for 90-110 km (56-68 mi) on flat road. Passenger load, speed, grades, temperature, tire pressure and accessories affect actual range.
The 51.2 V 150 Ah pack charges to 80% in under eight hours on the 48 V / 25 A charger.
Yes. Battery capacity, body color, seat material, windshield, lighting, wheels, display equipment, commercial accessories and spare parts can all be specified for the order.
Depending on the model, quantity, destination and current availability, individual buyers purchase through our authorized California dealer, and authorized dealers or commercial fleets can schedule volume deliveries directly.
A typical factory production planning window is 15 to 25 days after the configuration and order details are confirmed. The quotation states the schedule for the selected model, quantity and packing method.
Vehicle classification and road-use rules vary by state and municipality. Tell us where the cart will operate and we will specify the equipment your state requires. Confirm registration and road-use rules with your local authority.
REQUEST A 4-SEAT QUOTE
Plan Your 4-Seat Golf Cart Order
Tell us what you need and where you are located. We’ll help with pricing and delivery options.
Single units ship from California stock. Container pricing is available for dealers and fleets.
